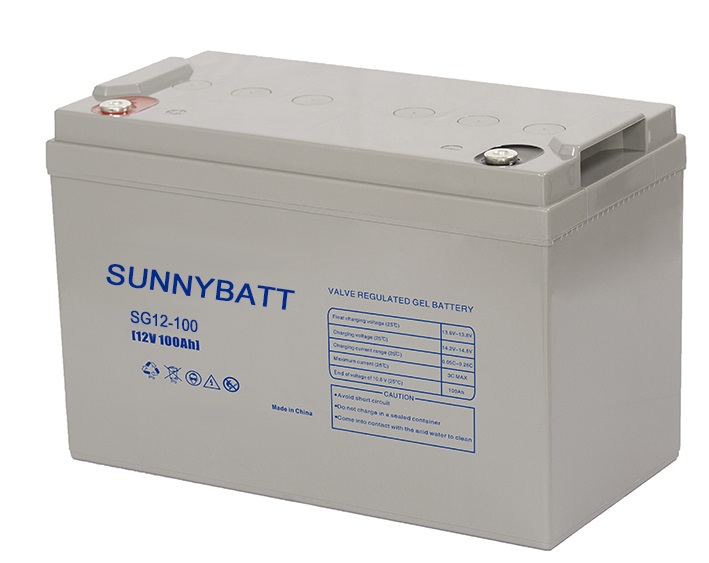

Gel Series
SUNNYBATT GL Gel Series battery is manufactured with special sheet separator and colloidal or foamed silica. The batteries use silica gel to immobilize the electrolyte inside the battery.The proven silica gel technology improves battery cycle life and performance at cold ambient temperatures. The deep discharge cycles is increased by 50% as compared with the AGM battery.
General
Environmentally Friendly
Longer Service Life
Excellent Recovery from Deep Discharge
High Reliability and Quality
High Power Density
Applications
Solar and Wind Systems
Cable TV Systems
Telecommunications
Wheelchairs
Marine Equipment
Military Equipment
Golf Carts
Emergency Lighting Systems
Power Plants
Medical Devices
Available Models
| Type | Nominal | Length | Width | Height | Total | Weight | Datasheet | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Voltage(V) | Capacity(A) | mm | in | mm | in | mm | in | Height | (Kg) | ||
| SG2200 | 2 | 200 | 173 | 6.81 | 111 | 4.37 | 330 | 12.99 | 364 | 15.2 | Download PDF |
| SG2300 | 2 | 300 | 171 | 6.73 | 151 | 5.94 | 330 | 12.99 | 364 | 20 | Download PDF |
| SG2400 | 2 | 400 | 210 | 8.27 | 176 | 6.93 | 330 | 12.99 | 367 | 27 | Download PDF |
| SG2500 | 2 | 500 | 242 | 9.53 | 173 | 6.81 | 330 | 12.99 | 365 | 31 | Download PDF |
| SG2600 | 2 | 600 | 302 | 11.89 | 175 | 6.89 | 330 | 12.99 | 367 | 40 | Download PDF |
| SG2800 | 2 | 800 | 410 | 16.14 | 175 | 6.89 | 330 | 12.99 | 367 | 53.5 | Download PDF |
| SG21000 | 2 | 1000 | 475 | 18.7 | 175 | 6.89 | 330 | 12.99 | 367 | 63.5 | Download PDF |
| SG21500 | 2 | 1500 | 400 | 15.75 | 350 | 13.78 | 345 | 13.58 | 382 | 105 | Download PDF |
| SG22000 | 2 | 2000 | 490 | 19.29 | 350 | 13.78 | 345 | 13.58 | 382 | 120 | Download PDF |
| SG23000 | 2 | 3000 | 710 | 27.95 | 350 | 13.78 | 345 | 13.58 | 382 | 190 | Download PDF |
| SG1255 | 12 | 55 | 350 | 13.78 | 167 | 6.57 | 179 | 7.05 | 179 | 21 | Download PDF |
| SG1272 | 12 | 72 | 306 | 12.05 | 169 | 6.65 | 210 | 8.27 | 215 | 27 | Not Available |
| SG1280 | 12 | 80 | 330 | 12.99 | 171 | 6.73 | 215 | 8.46 | 220 | 29.5 | Download PDF |
| SG1290 | 12 | 90 | 410 | 16.14 | 176 | 6.93 | 227 | 8.94 | 227 | 34 | Download PDF |
| SG12120 | 12 | 120 | 482 | 18.98 | 170 | 6.69 | 240 | 9.45 | 240 | 44.5 | Download PDF |
| SG12150 | 12 | 150 | 530 | 20.87 | 209 | 8.23 | 215 | 8.46 | 220 | 54.5 | Download PDF |
| SG12160 | 12 | 160 | 522 | 20.55 | 238 | 9.37 | 218 | 8.58 | 223 | 58.5 | Download PDF |
| SG12200 | 12 | 200 | 520 | 20.47 | 269 | 10.59 | 203 | 7.99 | 208 | 70 | Download PDF |
| SGT12100 | 12 | 100 | 436 | 17.17 | 108 | 4.25 | 317 | 12.48 | 317 | 39.5 | Download PDF |
| SGT12120 | 12 | 120 | 552 | 21.73 | 110 | 4.33 | 288 | 11.34 | 295 | 44.5 | Download PDF |
| SGT12125 | 12 | 125 | 548 | 21.57 | 105 | 4.13 | 316 | 12.44 | 316 | 46 | Download PDF |
| SGT12160 | 12 | 160 | 546 | 21.5 | 125 | 4.92 | 317 | 12.48 | 323 | 53.5 | Not Available |
