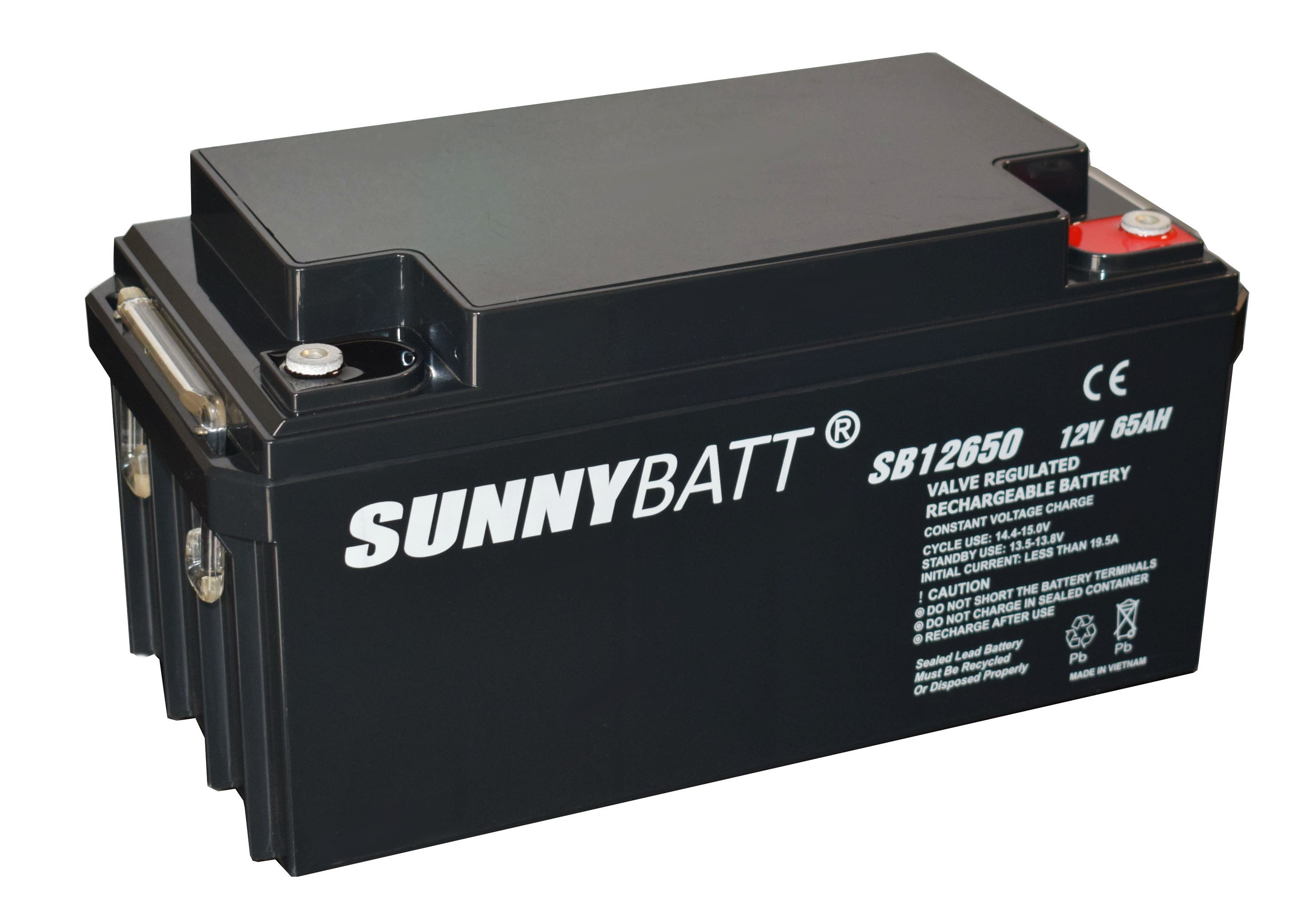

LF Series
SUNNYBATT LF series are designed for general-purpose applications, such as UPS, telecom, and electrical utilities. With 10 years design life, the batteries comply to the most popular international standards, such as IEC60896-21/22, BS6290-4, Euro bat Guide. The battery container and cover are available both in V0 class flame retardant ABS or HBO ABS plastics. Designed for dependable standby service, SUNNYBATT LF Series provides a long-life VRLA option for demanding backup-power applications.
Applications
UPS
Solar Systems
Power Station
Military Equipment
Emergency Power System
Railway System
Telecom Systems
Electric Wheelchair
Marine Equipment
Available Models
| Type | Nominal | Length | Width | Height | Total | Weight | Datasheet | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Voltage(V) | Capacity(A) | mm | in | mm | in | mm | in | Height | (Kg) | ||
| 3LF200 | 6 | 200 | 240 | 9.45 | 185 | 7.28 | 275 | 10.83 | 275 | 10.83 | Download PDF |
| 3LF225 | 6 | 225 | 320 | 12.6 | 176 | 6.93 | 225 | 8.86 | 230 | 9.06 | Download PDF |
| 6LF7.2 | 12 | 7.2 | 151 | 5.94 | 65 | 2.56 | 94 | 3.7 | 100 | 3.94 | Download PDF |
| 6LF175 | 12 | 175 | 530 | 20.87 | 209 | 8.23 | 215 | 8.46 | 240 | 9.45 | Download PDF |
| 6LF17 | 12 | 17 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | Download PDF |
| 6LF24 | 12 | 24 | 166 | 6.54 | 175 | 6.89 | 125 | 4.92 | 125 | 4.92 | Download PDF |
| 6LF33 | 12 | 33 | 195 | 7.68 | 130 | 5.12 | 155 | 6.1 | 168 | 6.61 | Download PDF |
| 6LF40 | 12 | 40 | 197.5 | 7.78 | 465.5 | 6.52 | 170 | 6.69 | 170 | 6.69 | Download PDF |
| 6LF45 | 12 | 45 | 197.5 | 7.78 | 465.5 | 6.52 | 170 | 6.69 | 170 | 6.69 | Download PDF |
| 6LF55 | 12 | 55 | 239 | 9.41 | 132 | 5.2 | 205 | 8.07 | 210 | 8.27 | Download PDF |
| 6LF55T | 12 | 55 | 229 | 9.02 | 138 | 5.43 | 208 | 8.19 | 213 | 8.39 | Download PDF |
| 6LF60 | 12 | 60 | 258 | 10.16 | 166 | 6.54 | 206 | 8.11 | 215 | 8.46 | Download PDF |
| 6LF65 | 12 | 65 | 350 | 13.78 | 167 | 6.57 | 179 | 7.05 | 179 | 7.05 | Download PDF |
| 6LF75 | 12 | 75 | 258 | 10.16 | 166 | 6.54 | 206 | 8.11 | 215 | 8.46 | Download PDF |
| 6LF75T | 12 | 75 | 258 | 10.16 | 166 | 6.54 | 206 | 8.11 | 211 | 8.31 | Download PDF |
| 6LF80 | 12 | 80 | 350 | 13.78 | 167 | 6.57 | 179 | 7.05 | 179 | 7.05 | Download PDF |
| 6LF90 | 12 | 90 | 306 | 12.05 | 169 | 6.65 | 210 | 8.27 | 215 | 8.46 | Download PDF |
| 6LF100 | 12 | 100 | 330 | 12.99 | 171 | 6.73 | 215 | 8.46 | 220 | 8.66 | Download PDF |
| 6LF120 | 12 | 120 | 410 | 16.14 | 176 | 6.93 | 224 | 8.94 | 224 | 8.94 | Download PDF |
| 6LF135 | 12 | 135 | 341 | 13.43 | 173 | 6.81 | 283 | 11.14 | 287 | 11.3 | Download PDF |
| 6LF150 | 12 | 150 | 482 | 18.98 | 170 | 6.69 | 240 | 9.45 | 240 | 9.45 | Download PDF |
| 6LF180 | 12 | 180 | 522 | 20.55 | 238 | 9.37 | 218 | 8.58 | 223 | 8.78 | Download PDF |
| 6LF200 | 12 | 200 | 522 | 20.55 | 238 | 9.37 | 218 | 8.58 | 223 | 8.78 | Download PDF |
| 6LF230 | 12 | 230 | 520 | 20.47 | 269 | 10.59 | 203 | 7.99 | 208 | 8.19 | Download PDF |
